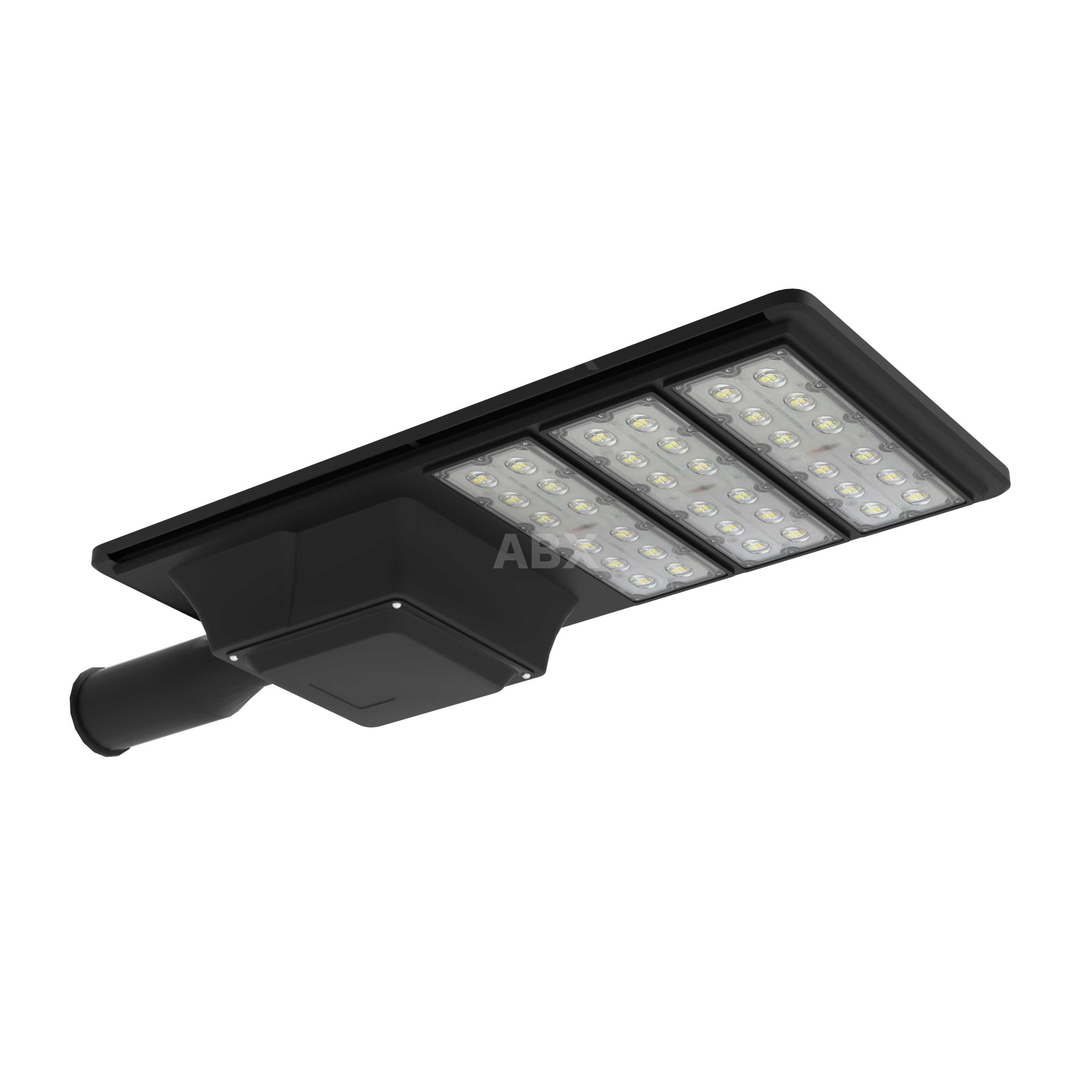

Product Details：
Grade-A Solar Cells
A-Grade Battery Cells
Insist On Self-developed Products
All Light Poles Pass Wind Resistance Rating Test
Intelligent Modules From Procurement To Production
Item | ABX-GG-010 | ABX-GG-020 | ABX-GG-030 | ABX-GG-040 |
LED Source | 10W | 20W | 30W | 40W |
Light Brightness | 1450LM | 3000LM | 4200LM | 5200LM |
Solar Panel | ||||
Power | 6V24W | 6V35W | 6V40W | 6V55W |
Lithium Battery | ||||
Capacity | 3.2V20AH | 3.2V40AH | 3.2V60Ah | 3.2V80AH |
Charging /Discharging Temp | 0℃~45℃ / -20℃~60℃ | |||
Charging Time | 6.5H | 7.5H | 7.5H | 8H |
LED (OSRAM) | 3030, 50pcs | 3030, 50pcs | 3030, 100pcs | 3030, 100pcs |
Color Temp | 6000K | |||
Efficiency | 230lm/W | |||
Perormance | ||||
Lighting Time In Rainy Day | >10 Days | |||
Lighting Mode | 100% (5H) + 20% Till dawn | |||
FAS | Yes | |||
Pole | φ60mm | |||
Linstall Height/Distance | 3m/15m | 4m/18m | 6m/27m | 8/36m |
IP / Ik Class | IP65 / IK08 | |||
